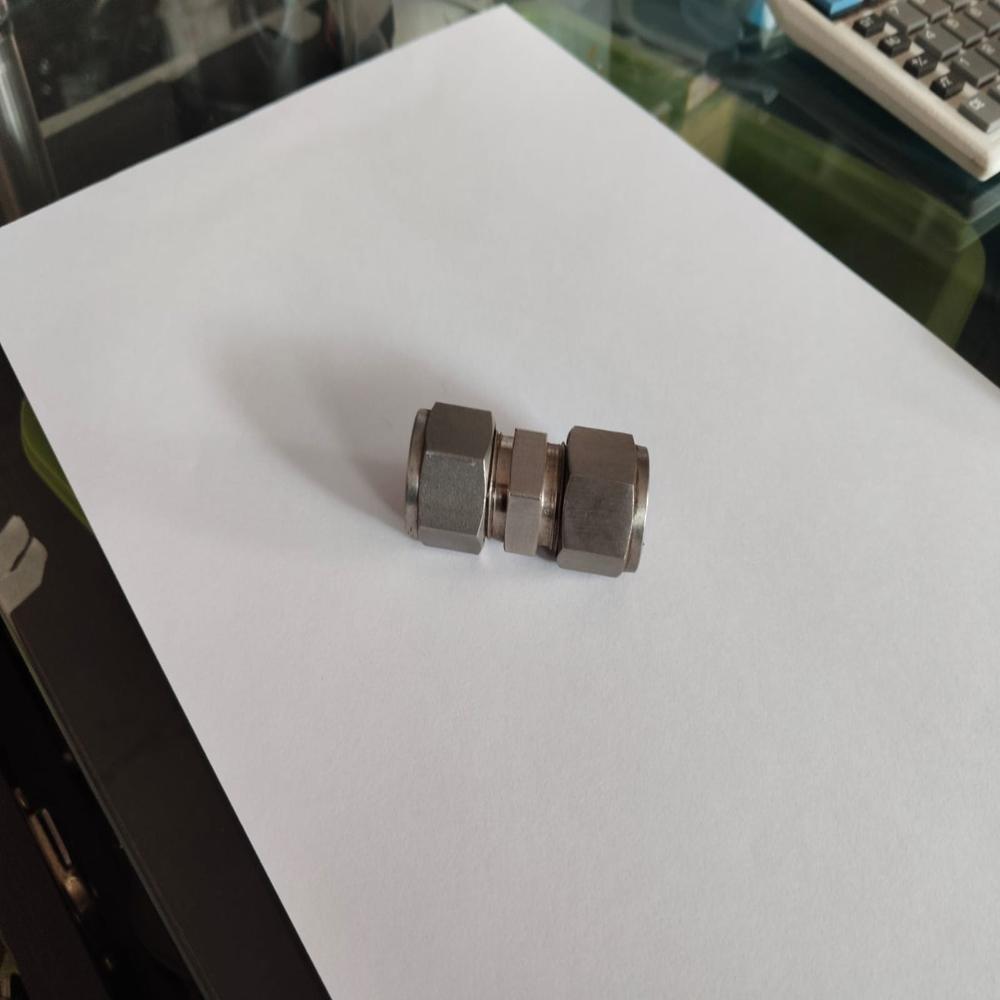

1/2" Ferrule Connector

1/2" Ferrule Connector Specification

Connection Type
Pipe Fitting

Flexibility
Threded

Tolerance
1 Millimeter (mm)

Working Presssure
800 Bar

Pressure Ratings
High

Coating Type
Normal

Temperature Range
150 Celsius (oC)

Thread Type
Union

Diameter
12 Millimeter (mm)

Product Type
Coupling

Material
Stainless Steel

Connection
Socket Joint

Shape
Round

Standard
BS EN10219

Surface Treatment
Black Painting

Outer Diameter
12 Millimeter (mm)

Section Shape
Oval

Length
12 Millimeter (mm)

Thickness
12 Millimeter (mm)

Color
Gray

Warranty
1 year

Usage
12

Application
Chemical Fertilizer Pipe

Material Grade
SS 316

1/2" Ferrule Connector Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Week

About 1/2" Ferrule Connector

Ferrule fittings are essential components in hydraulic systems, ensuring secure and leak-proof connections between tubing and other system elements. They are designed to handle high pressures and demanding conditions, making them crucial for maintaining system integrity and performance. The specifications for ferrule fittings include:

Material: Common materials include stainless steel and copper, with options for low sulphur 316L and ASME BPE compliance.
Thread Size: Ferrule fittings come with various thread sizes, including National Pipe Thread (NPT), British Standard Pipe (BSP), and Metric Thread (M).
Body Dimensions: The body of the fitting houses the ferrule and nut, featuring threads on one end for connection to other components within the hydraulic system.
Outer Diameter: The outer diameter is crucial for ensuring a proper fit and seal, with common sizes including 6mm, 8mm, 10mm, 12mm, and 1/4 inch, 3/8 inch, 1/2 inch, etc.
Inner Diameter: While not always specified, the inner diameter is important for applications where precise flow rates and pressure drops are critical.
Wall Thickness: Ferrule fittings have a wall thickness that is typically smaller than the thickness of the tubing wall, ensuring a secure grip and seal.
For more detailed specifications and options, it is recommended to consult with manufacturers or suppliers specializing in hydraulic fittings.
